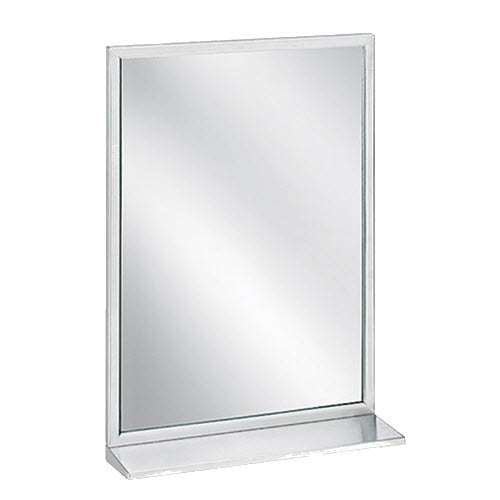

Mirror shall be framed with heavy gauge, one-piece, roll-formed, ¾" x ¾" stainless steel angle with double strength continuous integral stiffener. Welded corners shall be polished to a uniform satin finish. Integral 18 gauge stainless steel shelf shall have front and side flanges. Mirror shall be of first quality ¼" float glass guaranteed for 15 years against silver spoilage and protected by a shock-absorbing, neoprene tubing with Poly-Glaze protective finish. Back of unit shall be galvanized steel secured to frame with concealed screws, equipped with integral horizontal hanging brackets and separate wall hanger for concealed mounting

Features:

• Alternate reflective surfaces available: tempered glass, laminate glass, satin finish stainless steel, bright annealed stainless steel and Plexiglas
• Frame: One-piece, roll-formed stainless steel, ¾" x ¾" angle with corners welded, ground and polished smooth to a satin finish
• Back: Galvanized steel, secured to frame with concealed screws, equipped with integral horizontal hanging brackets
• Mirror: First quality ¼" float glass, thermosetting infrared-cured paint backing with Poly-Glaze protective finish
• Shelf: 18 gauge stainless steel with exposed surfaces in architectural satin finish
• Flanged front and side, welded to frame
• Shelf Brckets: 16 gauge stainless steel are provided on units exceeding 48" width
