Pressure balanced 2-3 Way shower system of our family Devon. With this shower set you have everything you need to install your shower. It is a two-way system with outlet for recessed shower head and outlet hand shower. Composed of two-way pressure balanced mixer, hose connector with holder, hand shower, hose and 12 in. recessed shower head.

Features:

• Mixer features:
• 2-3 Way Pressure balanced rough-in valve with two way diverter
• Shut-off valves and integrated anti-return valves
• Pressure balanced cartridge adjust inlet pressure fluctuations.
• Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
• Maximum outlet temperature and volume can be limited
• Working pressure:
• Min: 20 PSI (1.5 bar)
• Max: 125 PSI (8 bar)
• Recommended: 45 PSI (3 bar)
• Hot water inlet max. temperature: 180 °F (80 °C)
• Water inlet threads: 1/2 NPT male
• Full brass
• Trim features:
• Square design
• Full brass
• Connector features:
• Square design.

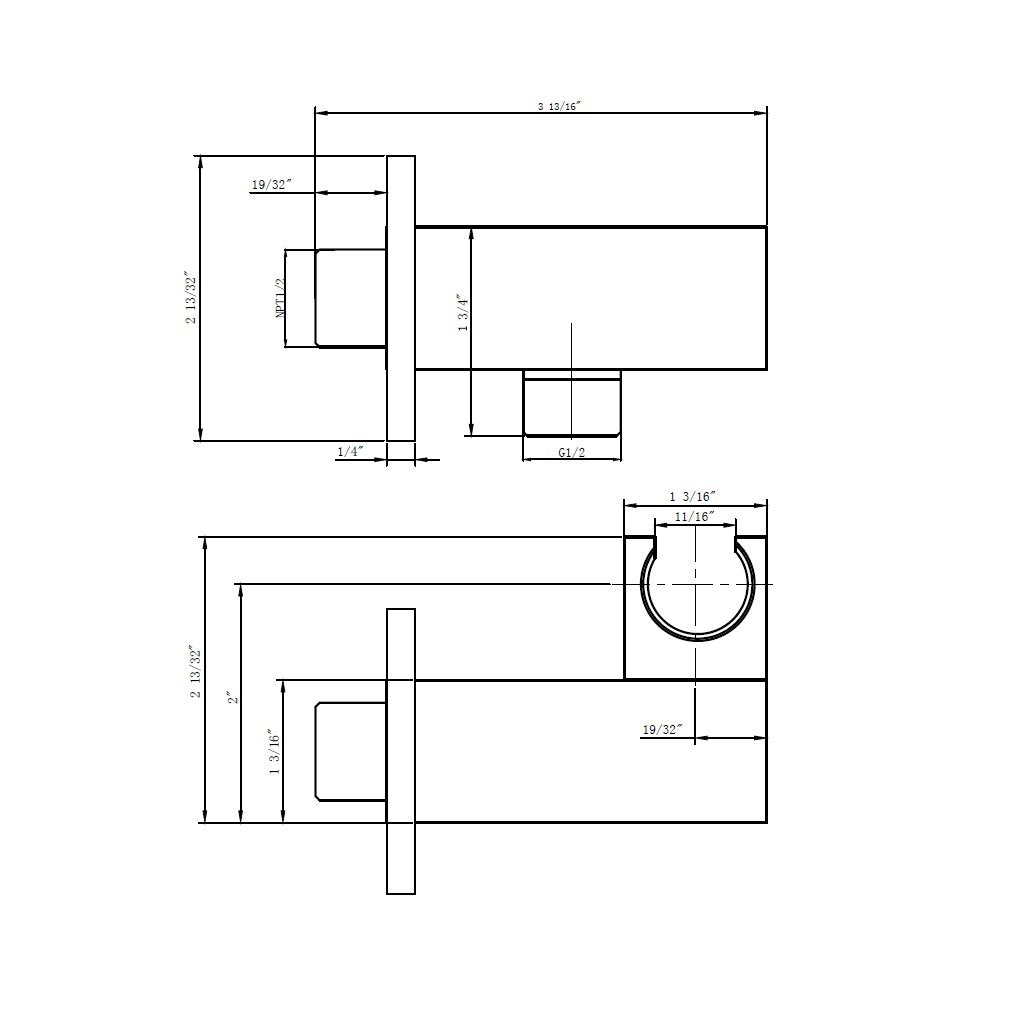

• Connector with holder
• NPT 1/2 in. inlet. G 1/2 in. outlet
• Hose features:
• Length 60 in.
• Stainless Steel construction.
• NPT 1/2 in. inlet
• Hand shower features:
• Square design.
• Only rain function.
• 1.8 Gpm
• G1/2 in. Inlet.
• Silicone square nozzles easy to clean.
• Shower head features:
• Recessed installation.
• Thin design (0.1 in. / 2 mm)
• G 1/2 in. female inlet
• Full rain spray single function
• 2.5 Gpm @ 80 PSI
• Silicone sharp nozzles easy to clean
• Made in stainless steel.
• Material: Brass
• Finish/Color: Matt Black
• Dimensions:
• Weight: 220.5 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

Documents:

• Spec Sheet (.PDF)
